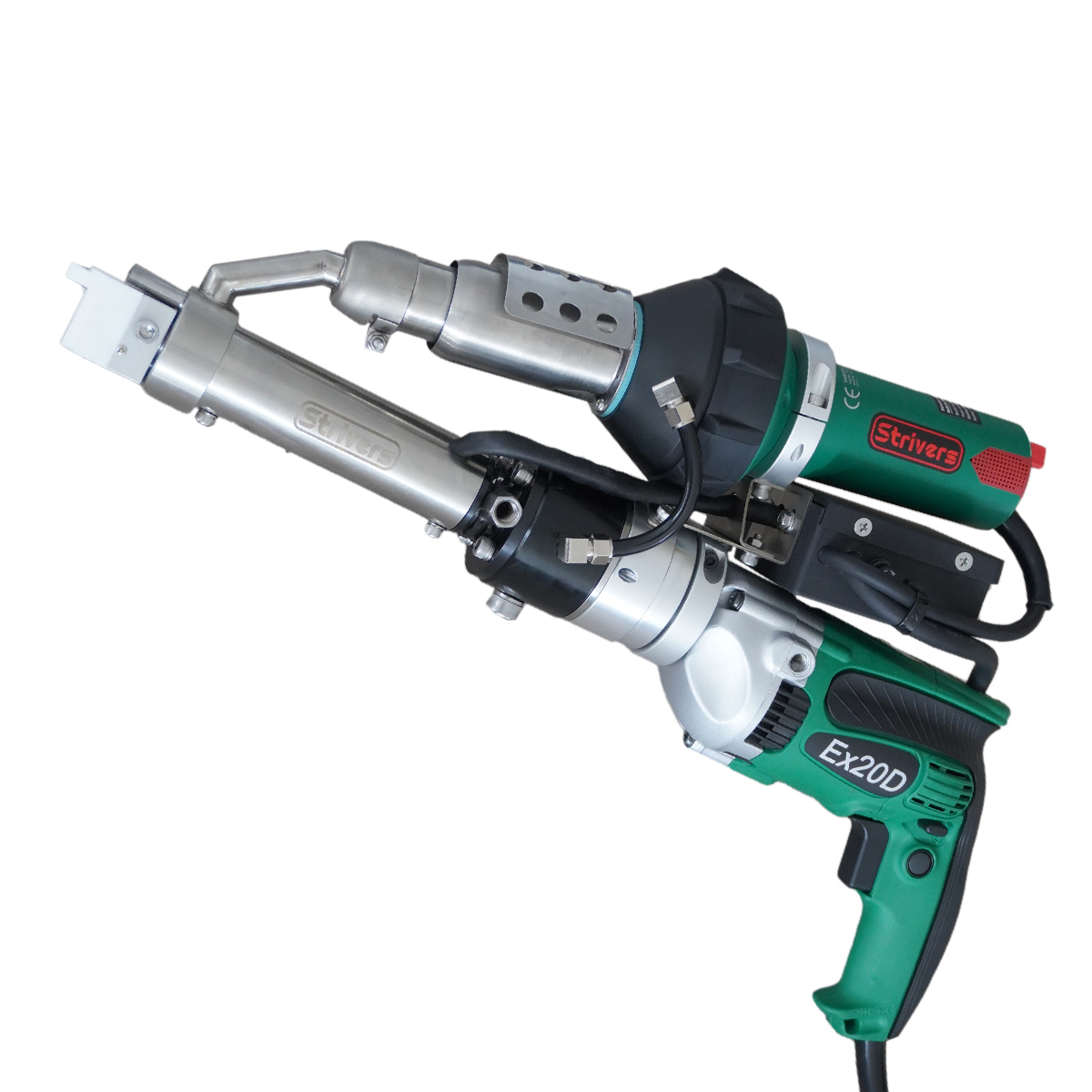

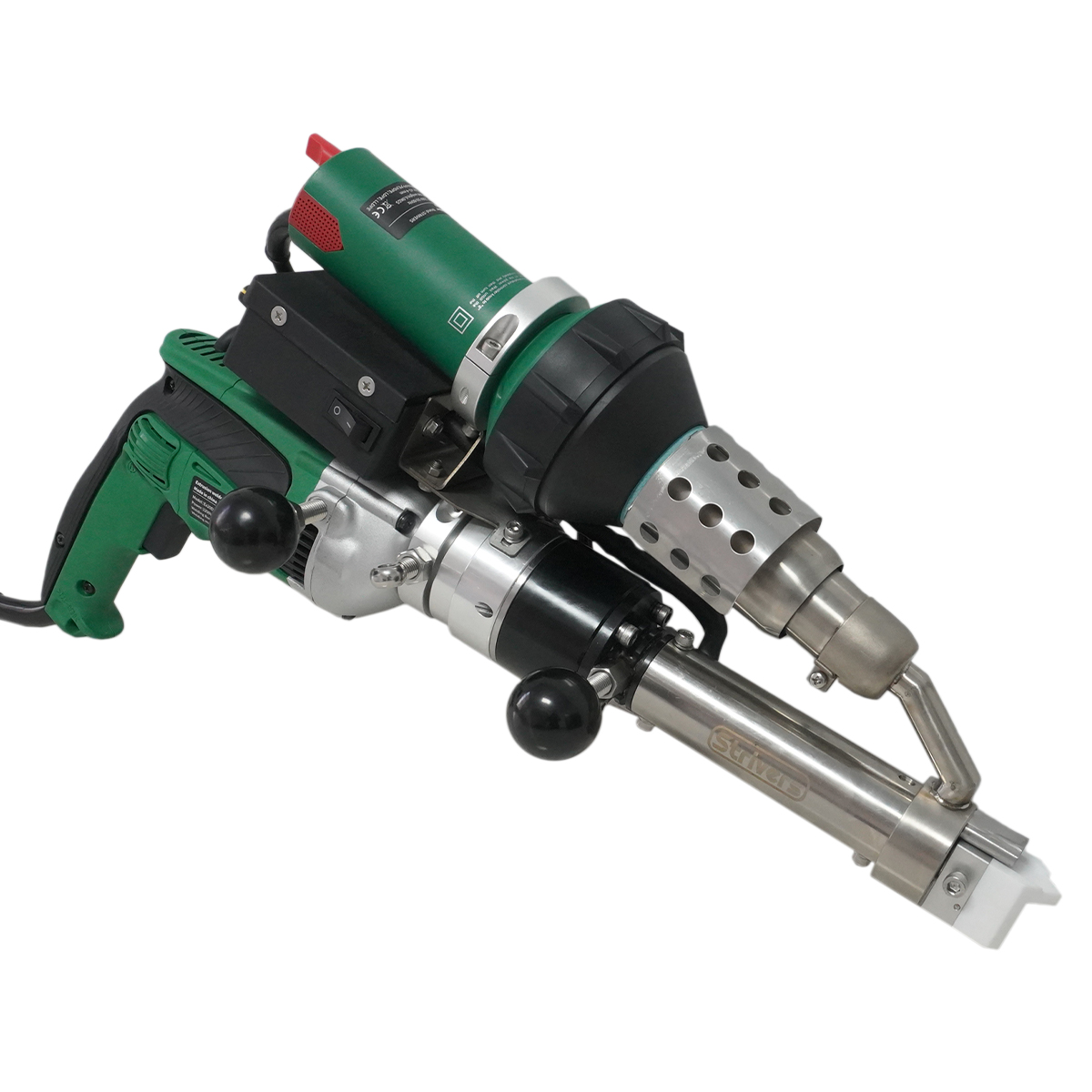

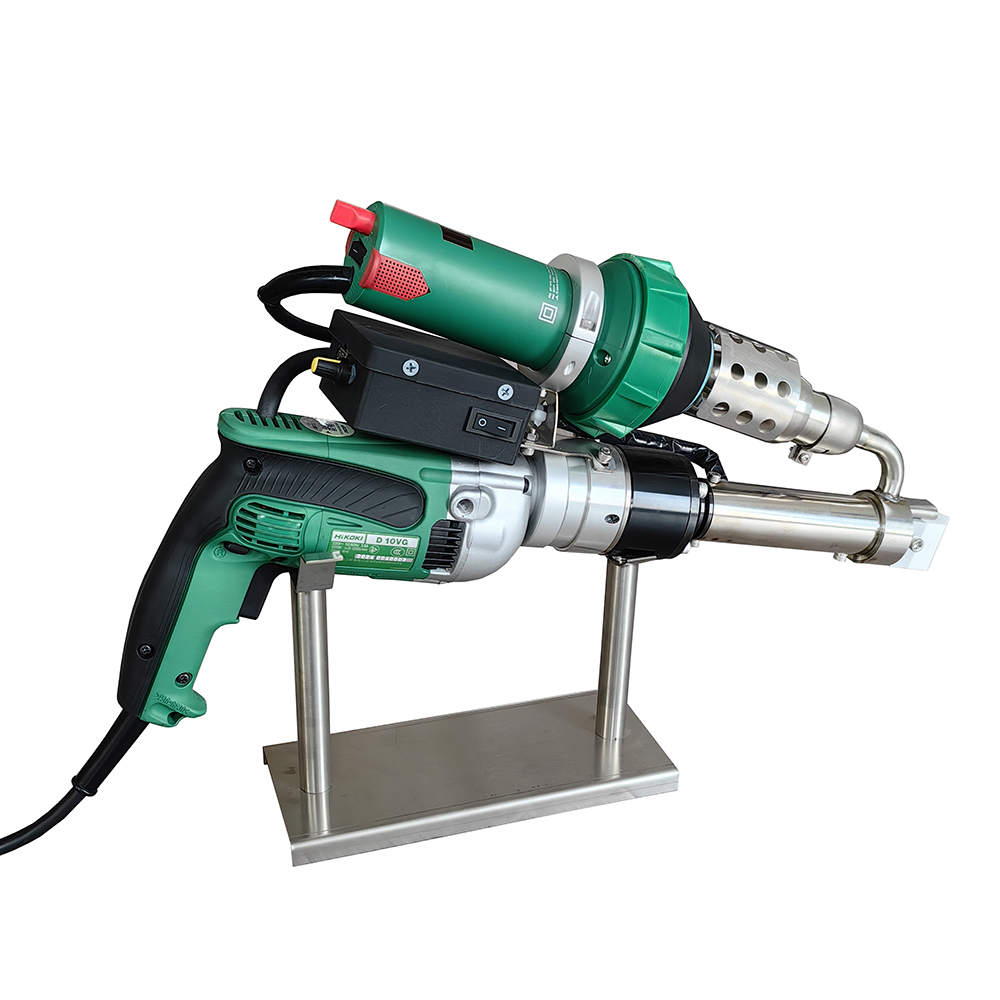

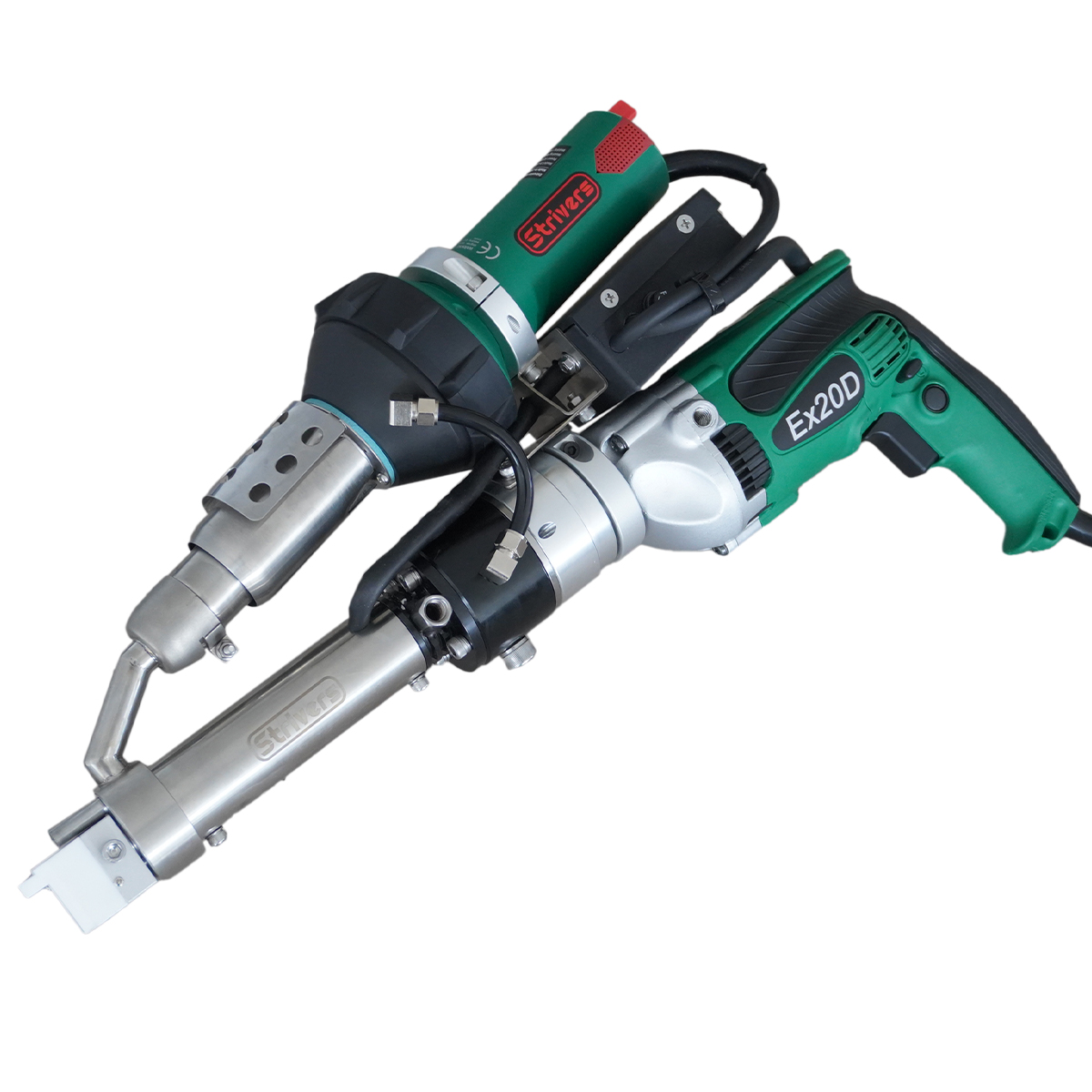

The EX20D is extremely compact, yet still powerful with 2kgs output. It's extremely durable, ergonomic and comes with countless ways to hold it. Due to the arrow-shaped body that narrows to a point, users may weld corners and difficult-to-reach places more easily than with traditional extruders. The guide for the pre-heated air is integrated into the end of the extruder, enabling the welding shows to be mounted in any position, rotating 360 °.

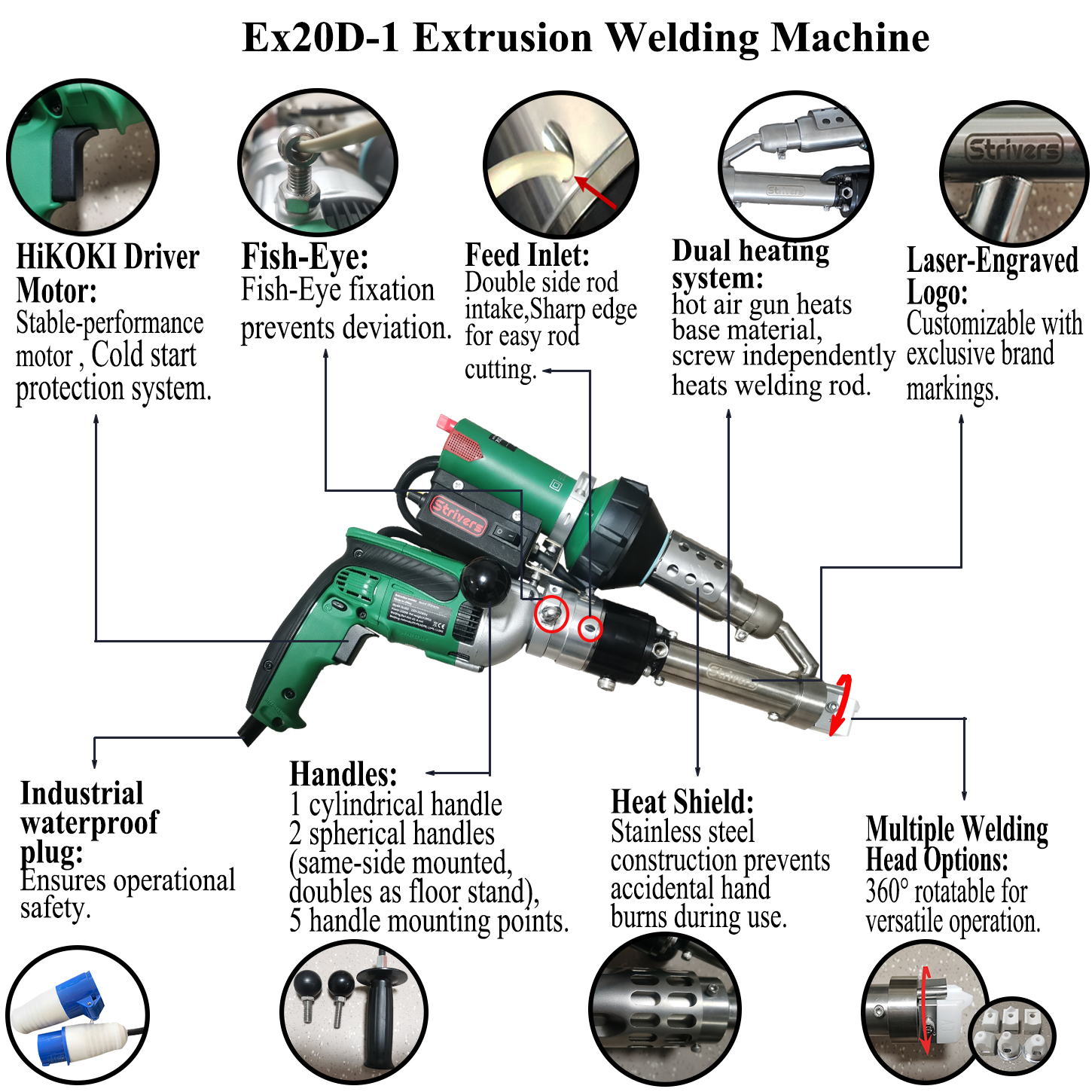

Dual heating system:air heating+screw heating
Light weight and small size
welding shoe can rotate 360 degrees

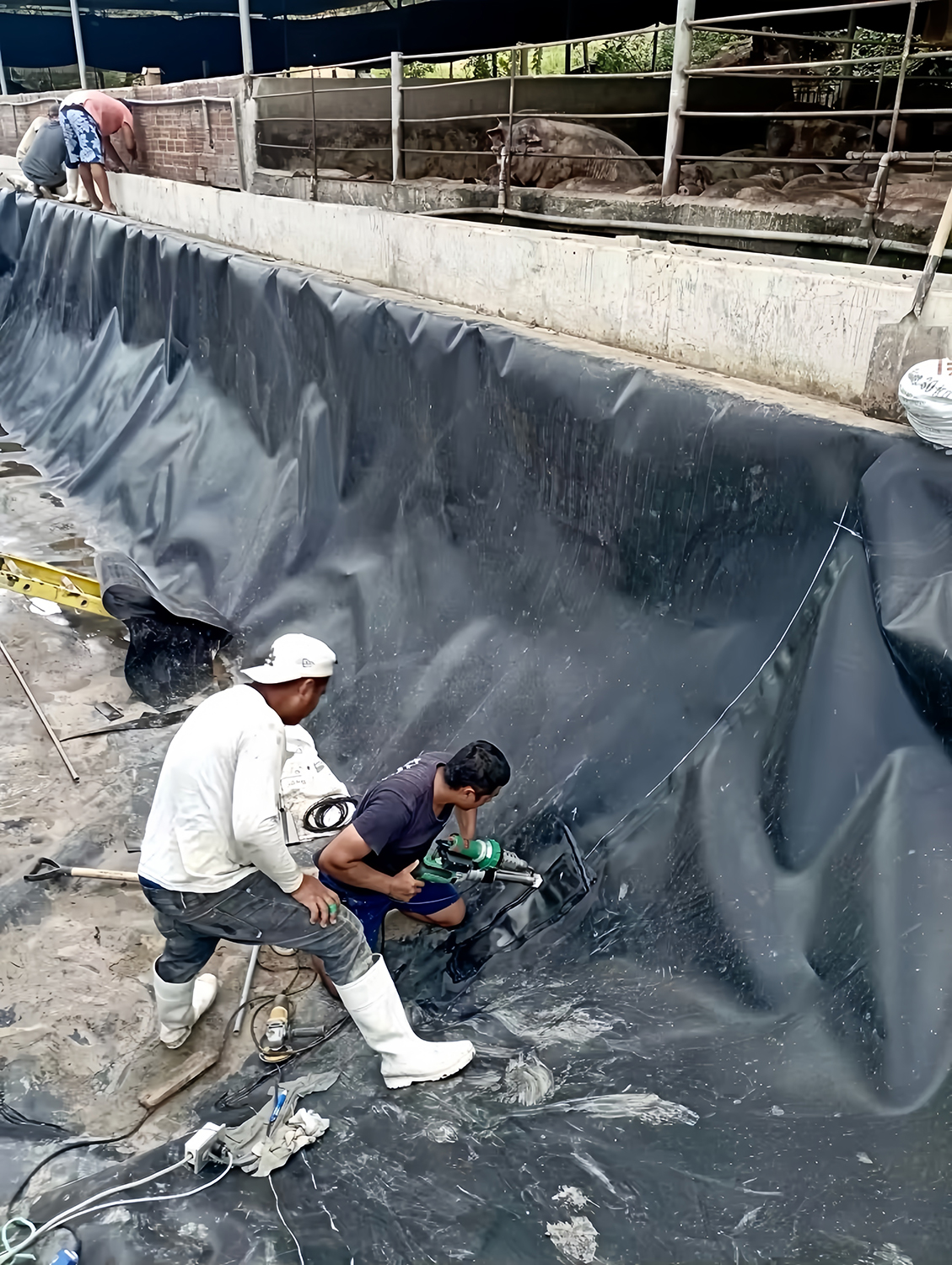

Aquaculture construction and repair; Landfill and mining membrane welding,Pipe and tube welding;Plastic tank fabrication;Boat construction and repair;Pipe and tube welding;Plastic repairs;Pond waterproofing;Reservoirs and canals waterproofing;Tunnel waterproofing
PP/HDPE/PVD
Welding shoe,Screwdriver tools,spare heat element, spare carbon brush,cylindrical handle， spherical handles

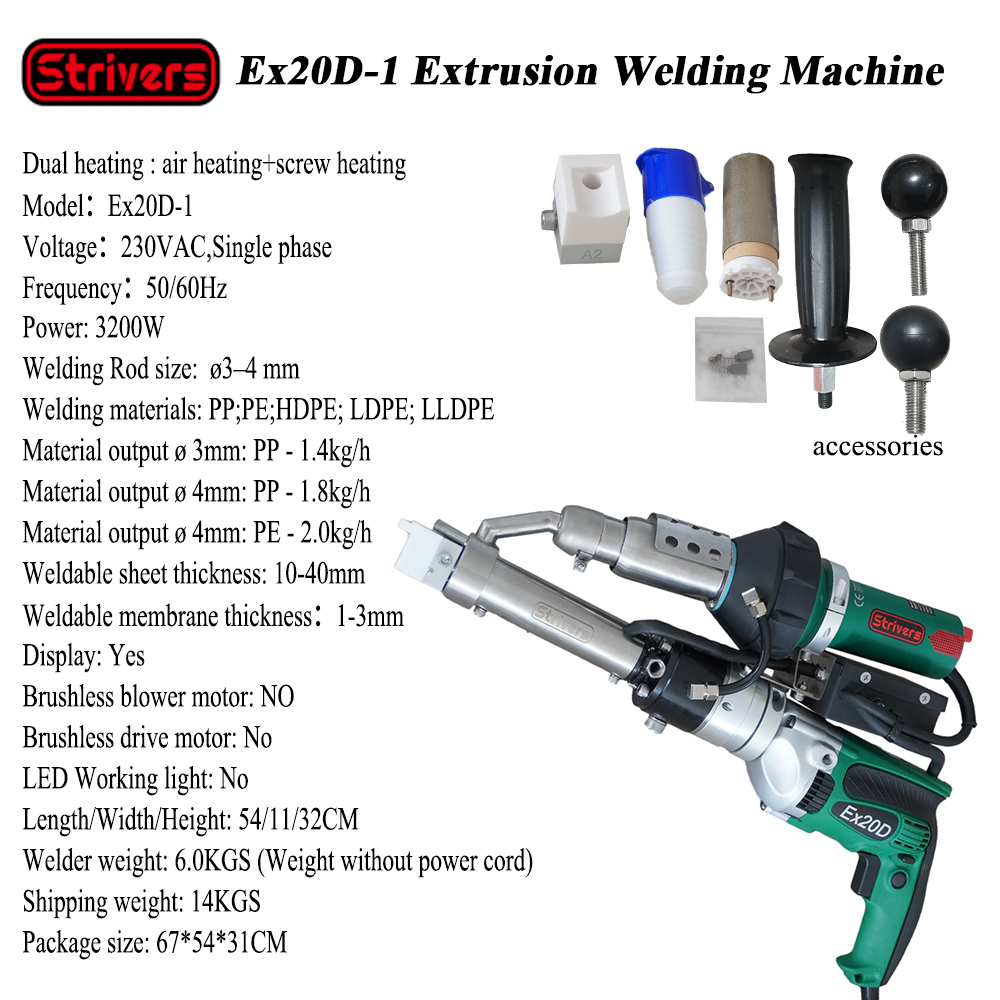

Technical Data
Voltage
230VAC,Single phase
Frequency
50/60Hz
Power
3200W
Welding Rod size
ø3–4 mm
Welding materials
PP;PE;HDPE; LDPE; LLDPE
Material output ø 3mm PP
1.5kg/h
Material output ø 4mm PP
1.8kg/h
Material output ø 4mm PE
2.0kg/h
Weldable sheet thickness
10-40mm
Weldable membrane thickness
1-3mm
Screw heating temperature Display
Yes
Brushless blower motor
NO
Brushless drive motor
NO
Length*Width*Height
54*11*32cm
Welder weight
6.0KGS (Weight without power cord)
Shipping weight
14KGS
Package size
67*54*31CM
