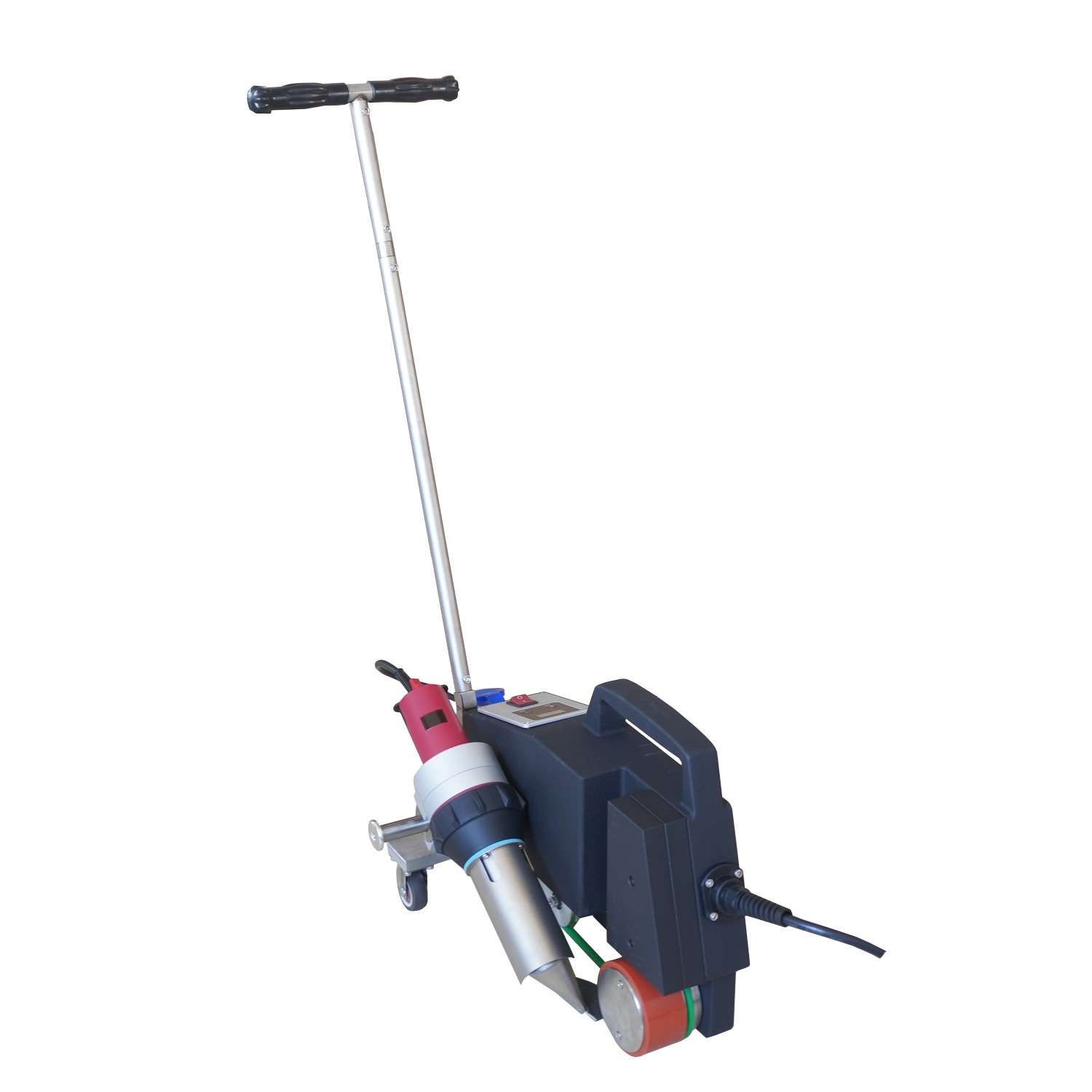

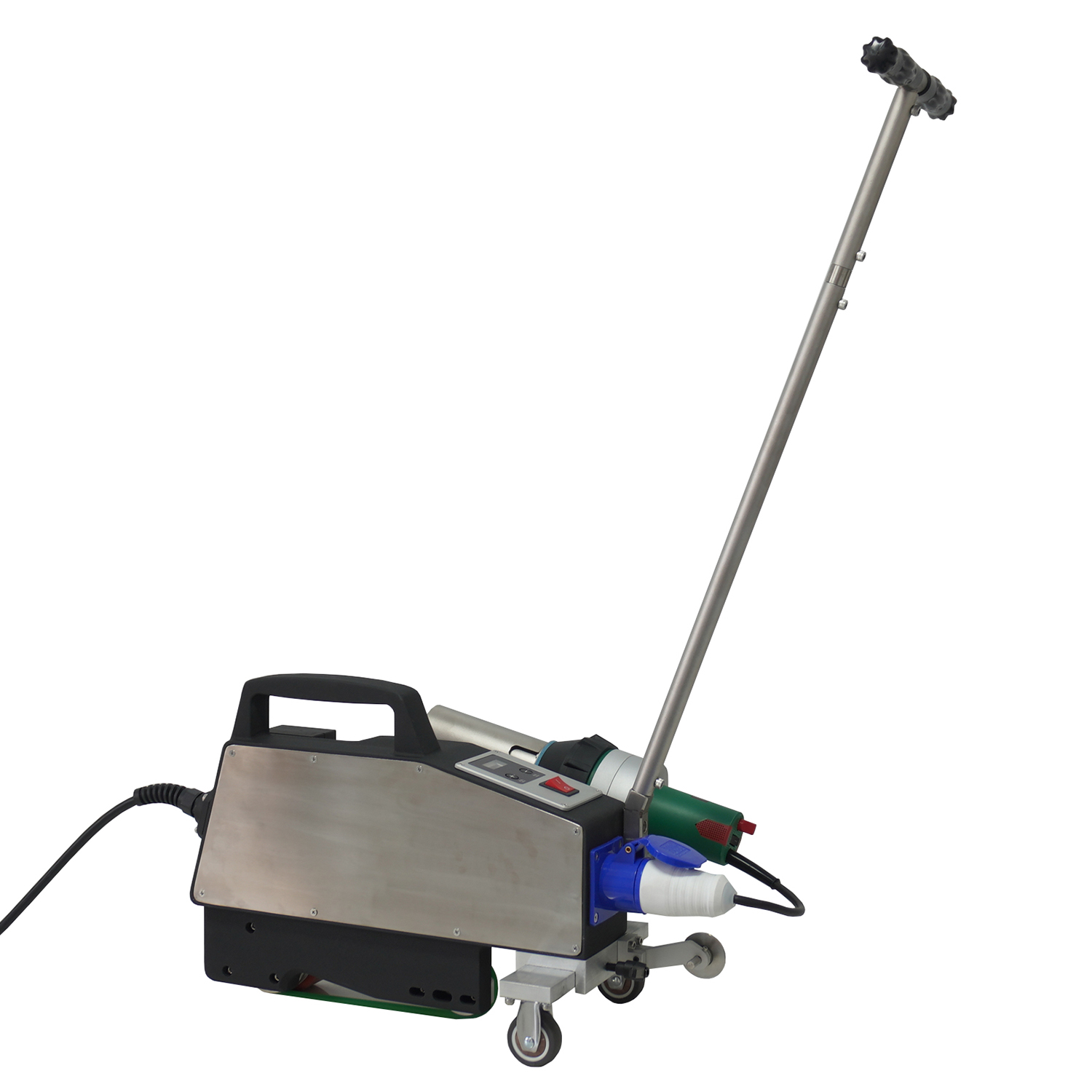

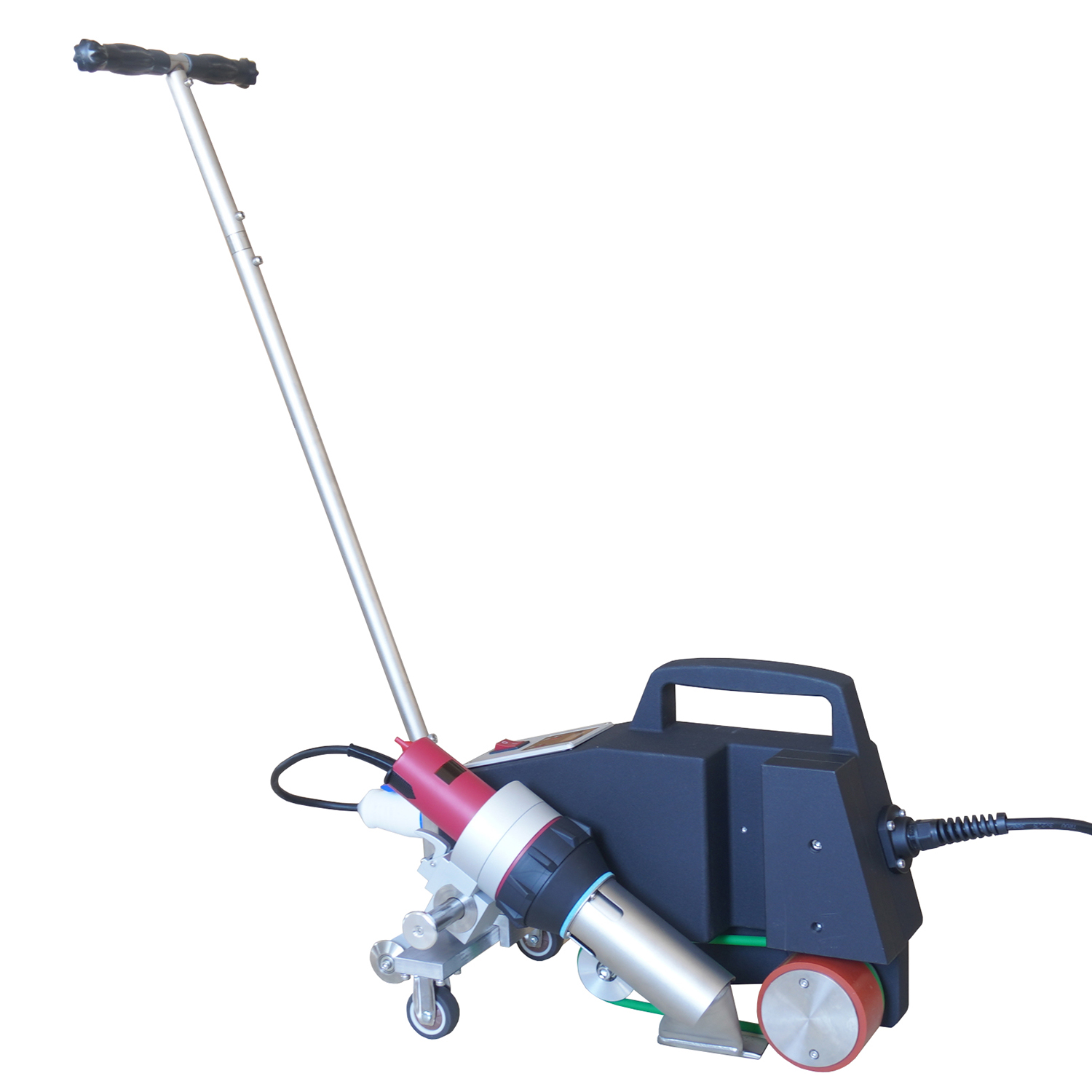

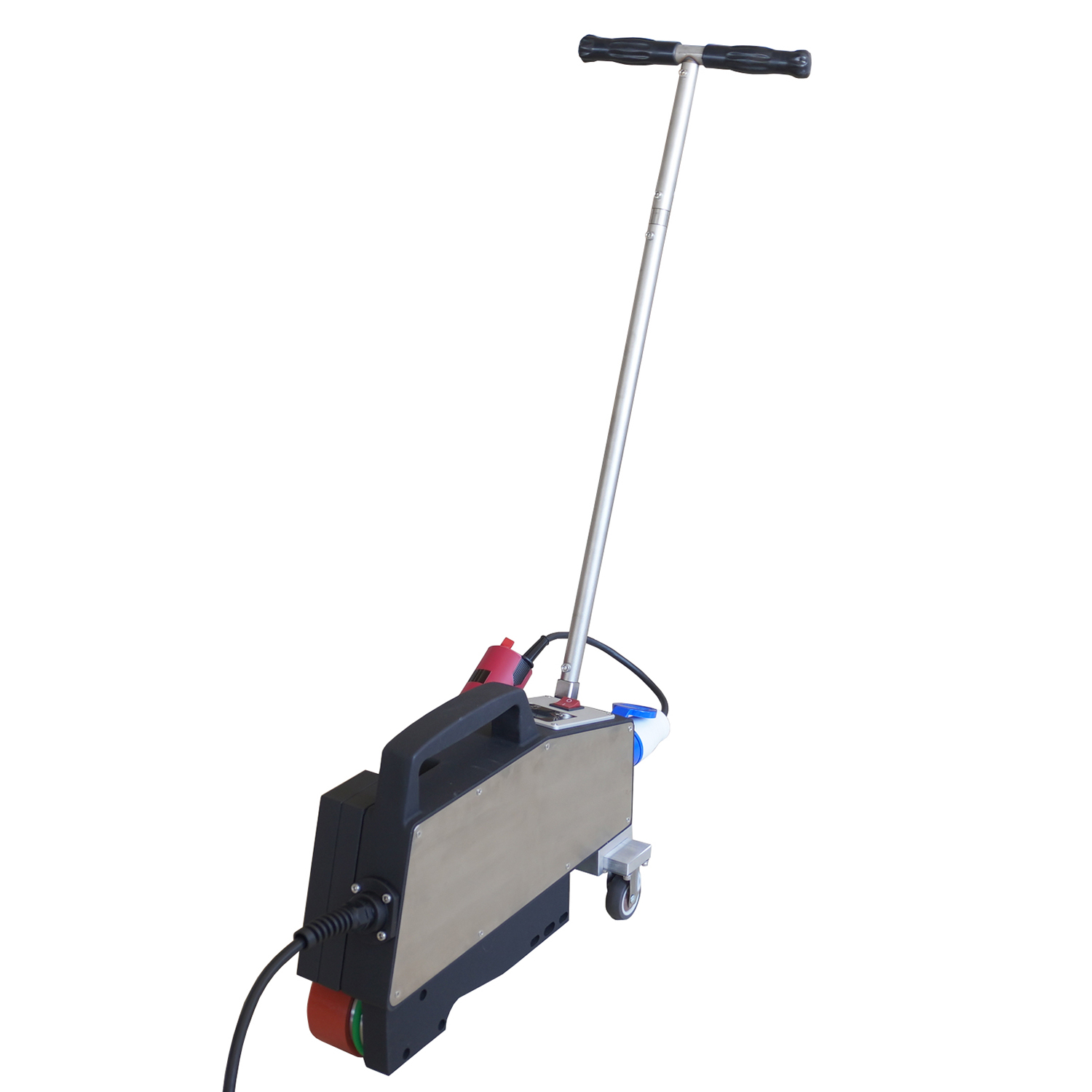

The Roof40A is a compact, automatic welding machine suited to weld thermoplastic membranes (for example made of TPO, PVC, EVA, PIB and modified bitumen) on flat roofs up to approx. 500 sqm and slightly inclined roofs (inclination up to 30 Slope grad).
It adopts advanced hot-air heating technology, is easy to operate, stable in performance, high in power, and has a wide range of industry applications. It can quickly realize industrial plants, public venues, underground projects, swimming pools, etc. Construction and welding of high-quality thermoplastic waterproofing membranes such as PVC, TPO, EPDM, etc. in many fields.
it is very easy for maintenance.
the welding effect is excellent.
Roof membrane welding construction
TPO, PVC, EVA, PIB and modified bitumen
Technical Data
Voltage
230 V
Frequency
50/60 Hz
Power
3600W
Speed
1.5 - 10 m/min
Temperature
50 - 600 °C
Air volume adjustable
YES
Welding nozzle / seam width
40mm
Welding materials
Bitumen; ECB; EPDM; EVA; FPO; PIB; PVC; TPE; TPO; TPU
size
520*240*330MM
power cable length
3m
